Steel Tire Carrier Adjustable Wheel Mount

Steel Tire Carrier Adjustable Wheel Mount

$134.00 CAD
$134.00 CAD $134.00 CAD
Sale Sold out
Shipping calculated at checkout.

This wheel mount kit is used in our Custom Scouts steel modular tire carrier bumper kit (S2-1053F), but can be used on ANY tire carrier bumper project you have.

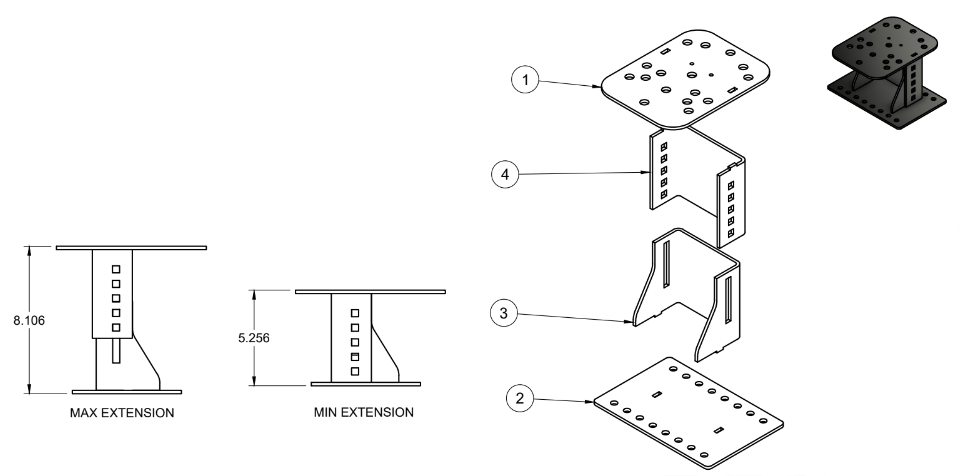

When mounted to our modular tire carrier bumper this mount can positioned up, down, or even side to side to suit nearly ALL of your current or future tire size, wheel offsets, desired looks or function.

All the options in one bracket.  Call it "getting what you want" or "Future proofing", either way its a must have.

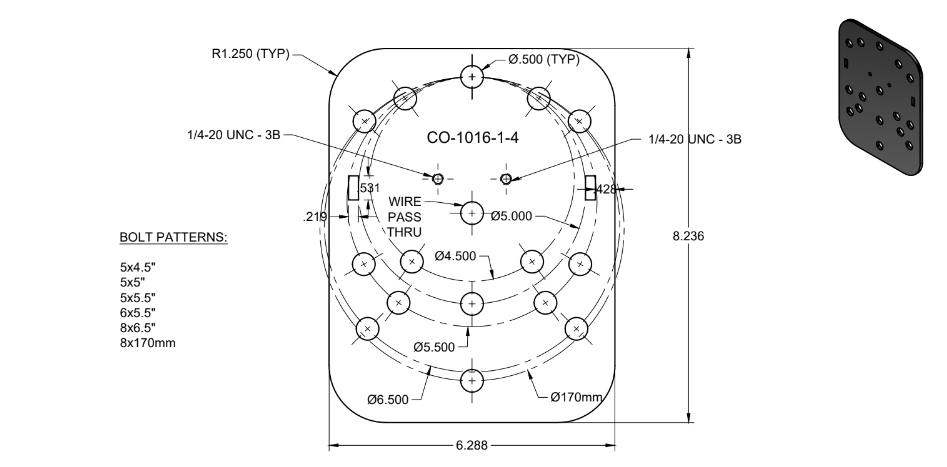

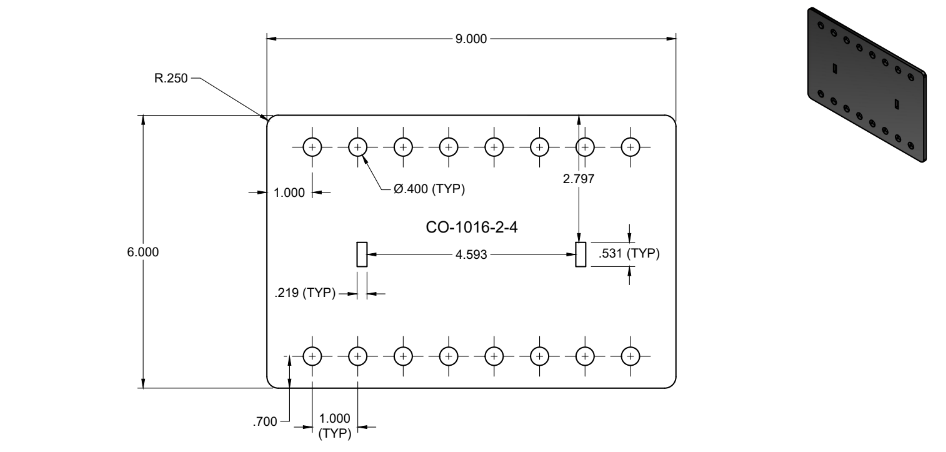

Accommodates nearly every common wheel offset and bolt pattern out there. (See dimensions in the product pictures).

5 x 4.5

5 x 5.5

6 x 5.5 (139.7mm)

8 x 6.5

8 x 170mm

*Welding required

Product Details

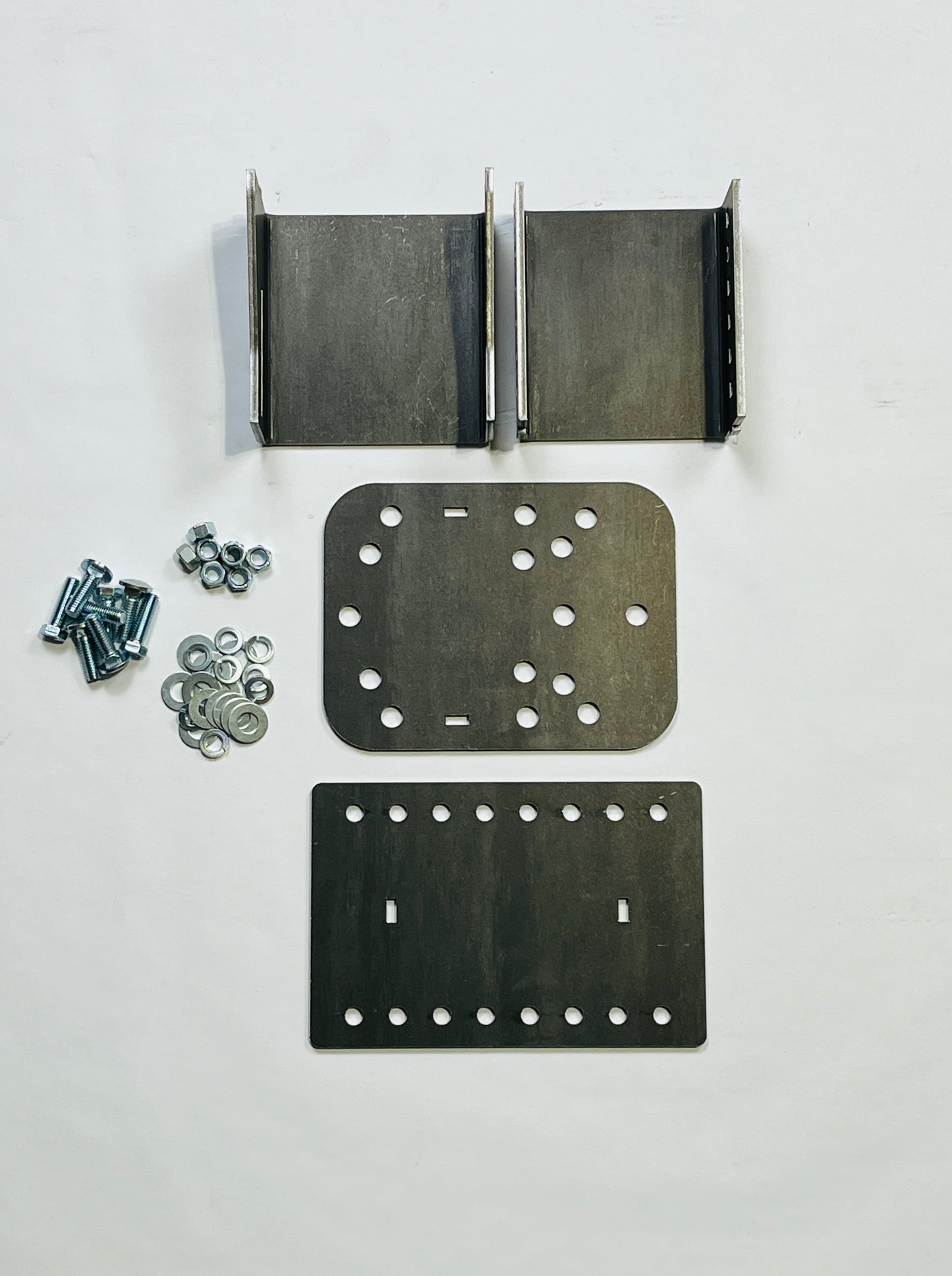

Your Kit Includes

“Zero Rust” Benefits

Do the job once and never look back again. Ever!

Adds value to your restoration by resisting rust like nothing else.

Easy to weld.

Weight & Dimensions

Extra Considerations

Not Included

View full details

Pairs well with

  • Classic Jerry Can/ROTOPAX Mount Bracket

    100% Aluminum. This allows you to mount either a ROTOPAX container or our 20L Jerry Can Mount to your project. Use this bracket for any project or with our modular tire carrier bumper with NO accessory plate.

    View details

  • Title

    Description

    View details

Assembly made easy

Weld yourself a finished product.

All our products are made quick to assemble and install with our intuitive design and easy to read instructions. Just

1. Align the tabs. Weld together. 3. Install and done!
