30 Gallon Steel Fuel Tank

30 Gallon Steel Fuel Tank

$499.99 USD
$499.99 USD $499.99 USD
Sale Sold out
Shipping calculated at checkout.

Essential for off-roaders and spirited drivers. Our fully baffled steel fuel tanks are designed to hold 30 gallons of fuel, allowing an almost 40% reduction in refueling stops, ensuring you and your Scout can get on with your exciting and uncharted adventures. Baffles, what are those?

Baffles keep the fuel where you want it, around the fuel pick up. They also help keep the fuel level gauge stable when accelerating or decelerating on- or off-road. We added additional baffles, designed to stop your tank vent ports from sucking fuel and plugging the vents.

Also that annoying “sloshing” sound you get during spirited driving….gone!

If you don't weld, send the kit to a local welding shop of your choice or convince one of your buddies to weld it for you. These kits are made to be assembled easily, even by an amateur welder.

Follow the build process of one of our good customers at the link below on binder planet.

https://www.binderplanet.com/forums/index.php?threads/toms-79-woodbine-beaster-canadian-no-longer-a-mess-ssii.135687/page-96#post-1206561


Product Details

CNC cut 1/8" Aluminum tank kit

Fully baffled

Steeper departure angle for less chance of damage off road

Cleverly built-in 1” lift for Scouts with a body lift, giving more ground clearance

Inspection hole for each internal compartment to ensure proper internal tank coating

Fits 1971-1980 Scout II or Traveler with original rear frame crossmember and next forward crossmember with no modifications to it

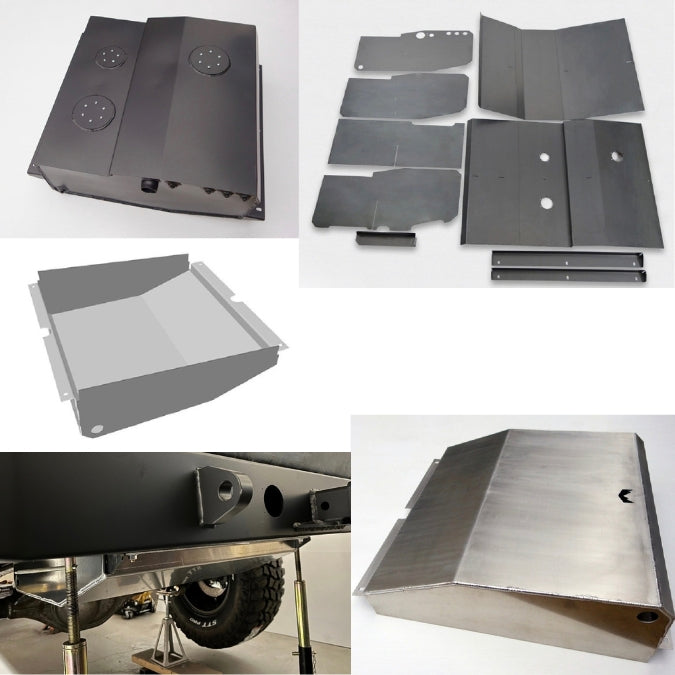

Your Kit Includes

3 extra thick steel flanges for fuel pump, fuel sender and inspection port

5 x ¼” NPT forged steel weld-in tank flanges

3 x ¼” threaded plugs for tank vents and drain

3 fuel pump, sender and inspection port covers to allow for pressure testing your tank after welding

1 inspection port gasket

1 filler neck with cap for tank pressure testing after welding

10/32 hardware for pressure testing your tank after welding

¼” NPT tank valve for pressure testing your tank after welding

2 ¼” barbed nipples for tank vents.

Hardware for installation

Assembly Instructions

Full list of part numbers to order the fuel pump and fuel sender that suits your build

Extra Considerations

f you don't have a 1” body we suggest you purchase separately our 1" Fuel Tank Drop Kit to clear the underside of your Scout’s original ride height body—OR you will need to cut and reposition mounting brackets 1” higher on the tank.  If you choose to cut and reposition your brackets rather than buying OP-1008 kit, you will NOT be able to lift your fuel tank with a future body lift and you will NOT be able to bolt on our skid plates.

Not Included

Fuel pump and fuel sender

You will need these so that you have the gaskets for pressure testing

View full details

Pairs well with

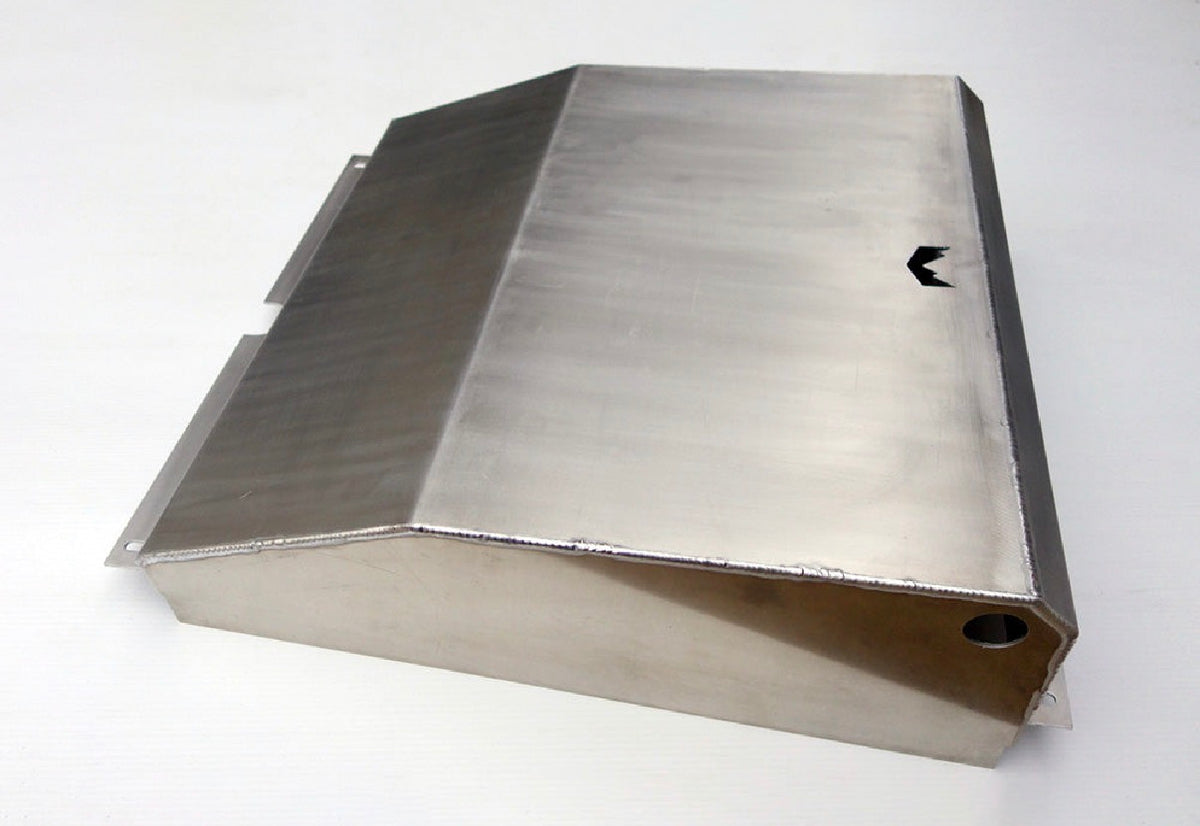

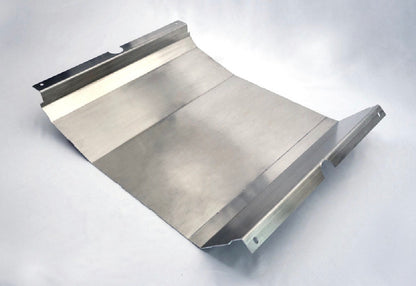

  • Aluminum Fuel Tank Skid Plate

    For extra protection for your fuel tank.

    View details

  • ¼” NPT Pressure Gauge

    To pressure test your fuel tank after welding.

    View details

  • 1" Fuel Tank Drop Kit

    For those that do NOT have an 1” or taller body lift.

    View details

Assembly made easy

Weld yourself a finished product.

All our products are made quick to assemble and install with our intuitive design and easy to read instructions.

1. Align the tabs
2. Weld together
3. Install and done
